Developed specifically for use in seismic application, the RIK-Q75 wall baseplate accommodates common steel square sections eliminating the need for high cost specialised profiles.
FEATURES & BENEFITS
RIK-Q75-W16
- Designed with lateral seismic loads in mind
- Small footprint to suit applications where space is limited
- Accepts 75 x 75 x 3.0 mm steel hollow section

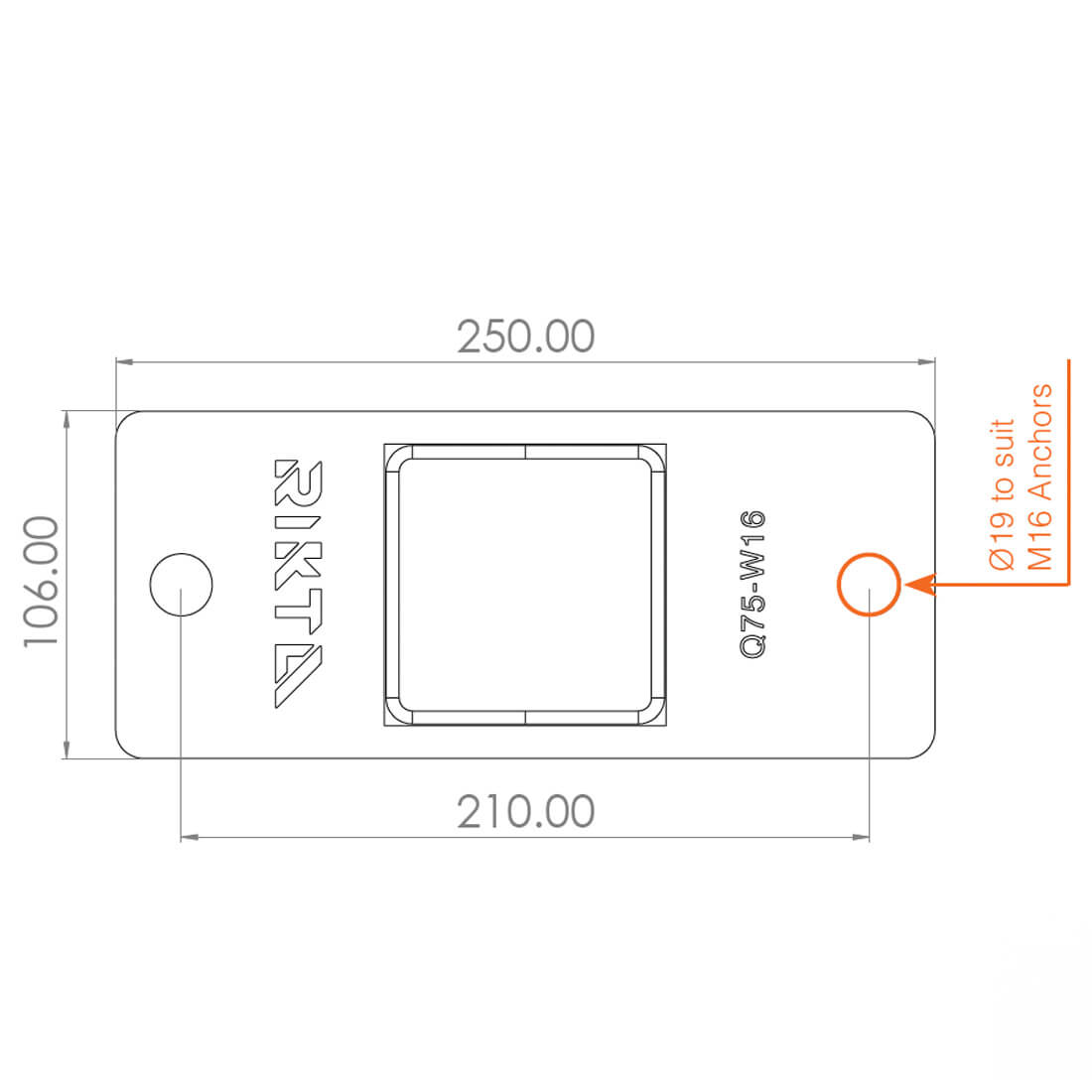

- M16 anchor holes optimally spaced to ensure maximum capacity

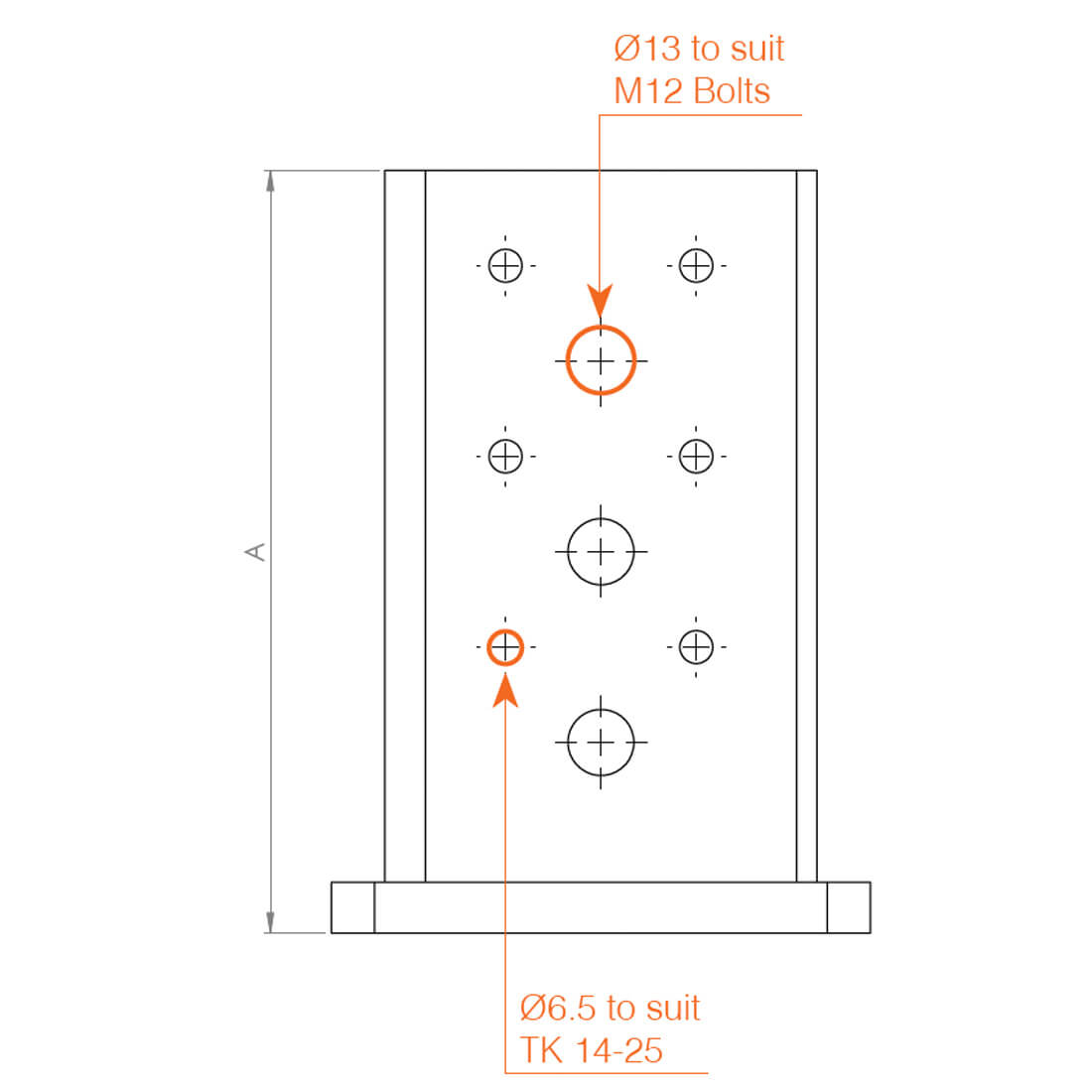

- Fast and simple installation via self-drilling screws or M12 bolts

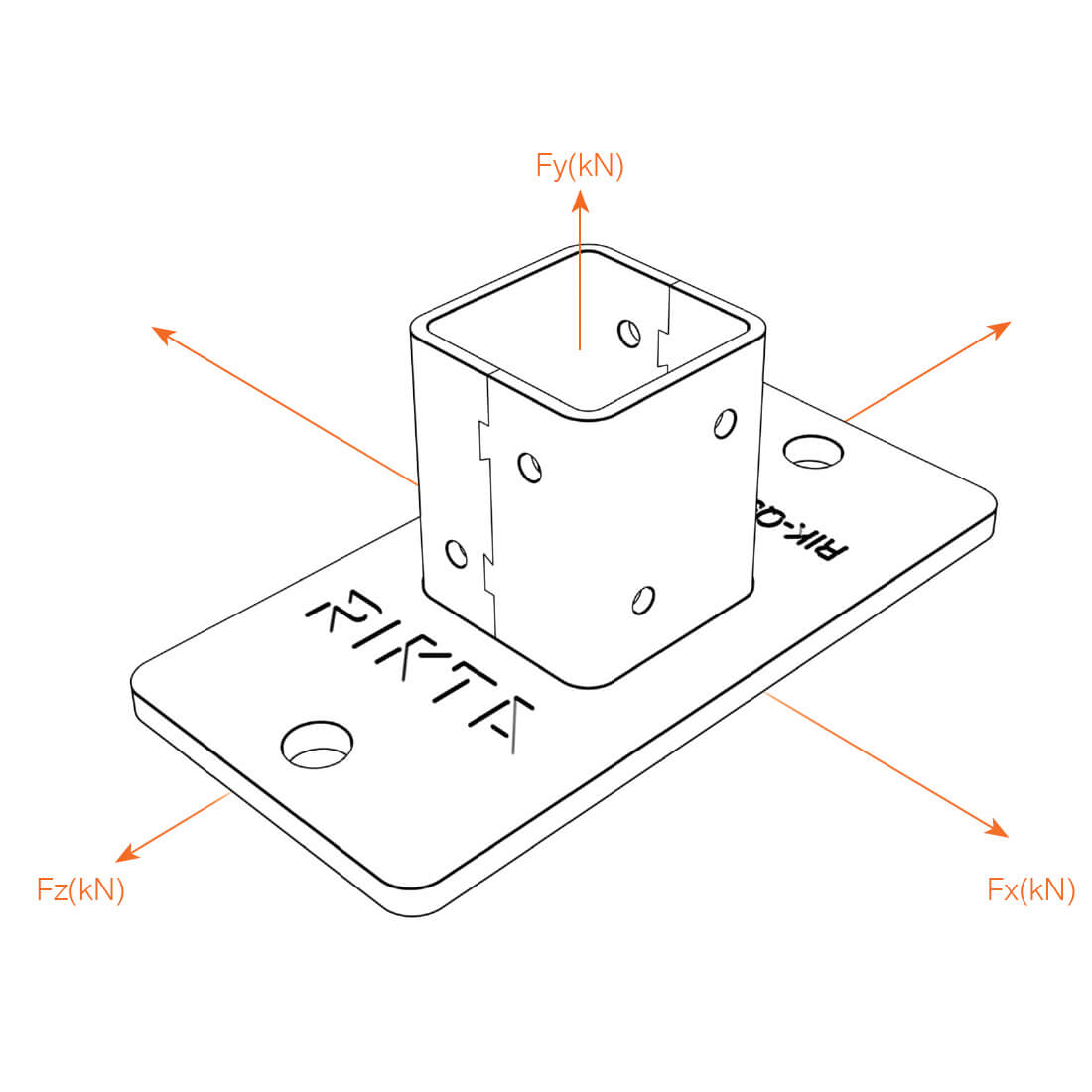

| Direction of Force | Peak Load (kN) |
|---|---|
| Fx(kN) | 6.91 |
| Fy(kN) | 48.64 |
| Fz(kN) | 6.31 |

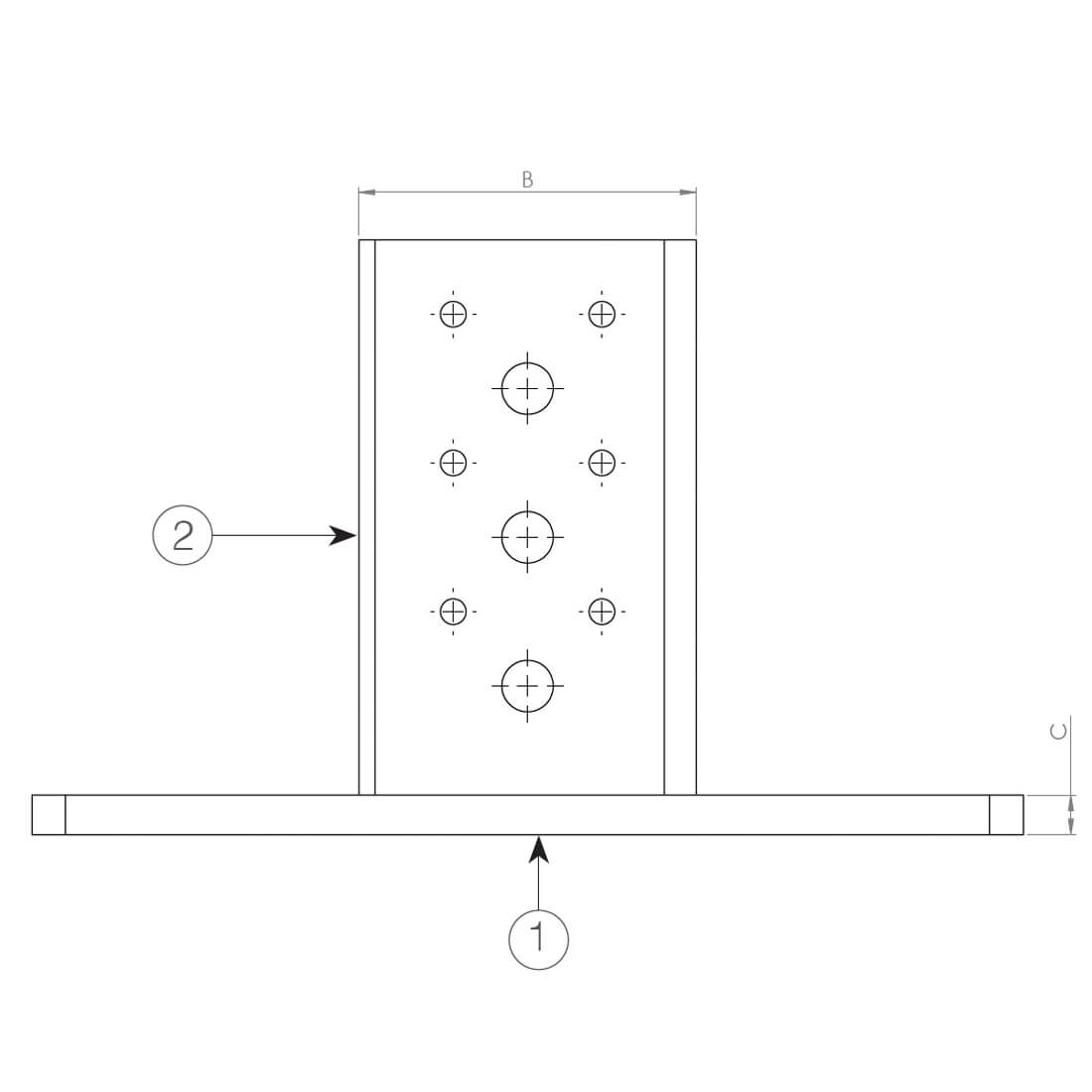

| RIK-Q75-W16 | Dimensions (mm) |
|---|---|
| A | 150 |
| B | 85 |
| C | 10 |
| Materials |
|---|
| 1 AS G350 Mild Steel 2 AS G250 Mild Steel |
