Developed specifically for use in seismic application, the RIK-Q50 wall baseplate accommodates common steel square sections eliminating the need for high cost specialised profiles.
FEATURES & BENEFITS
RIK-Q50-W12
- Small footprint baseplate designed to work in narrow spaces
- Accepts 50 x 50 with a 3.0 mm minimum steel hollow section (SHS)

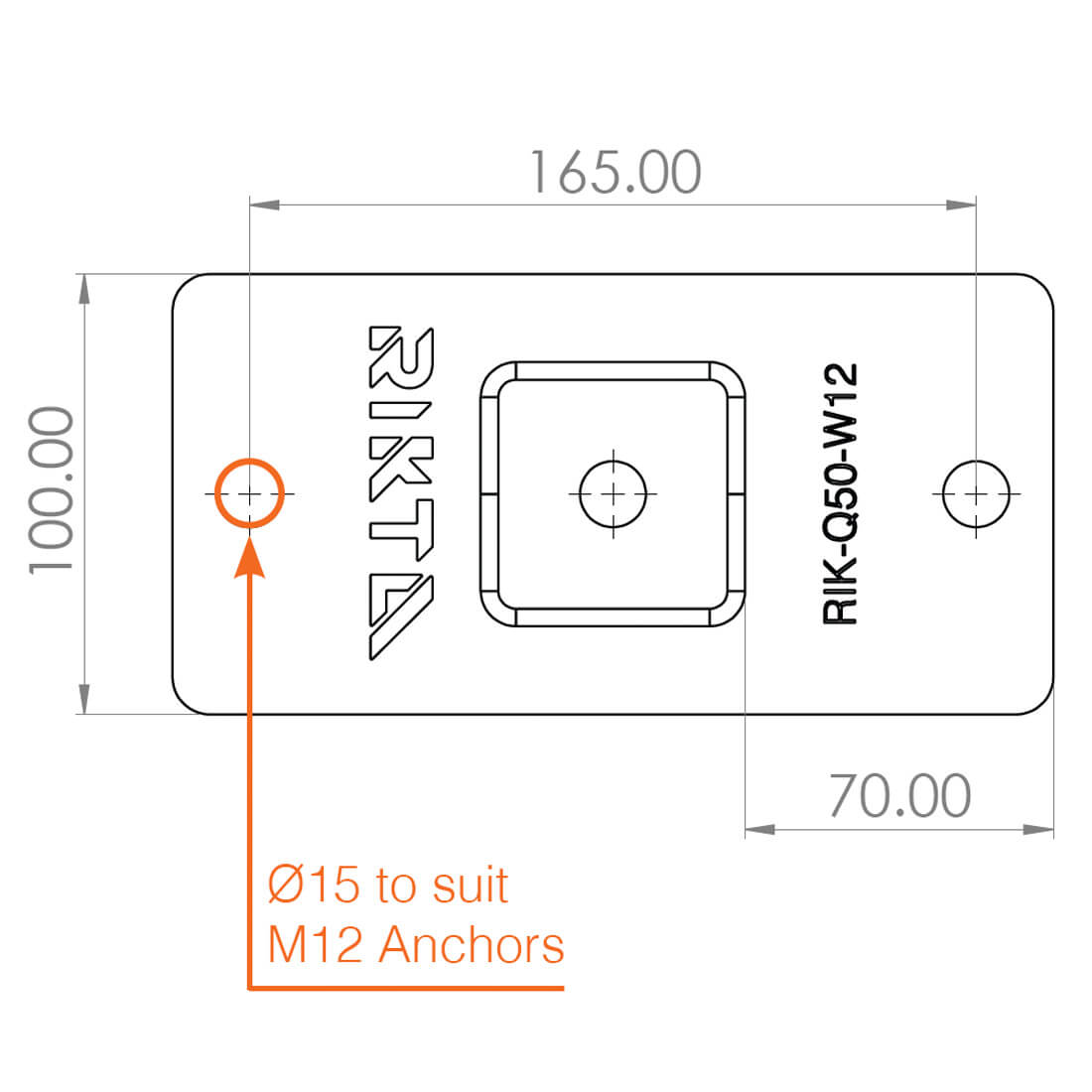

- M12 anchor holes optimally spaced to ensure maximum capacity
- Fast & simple installation via self-drilling screws

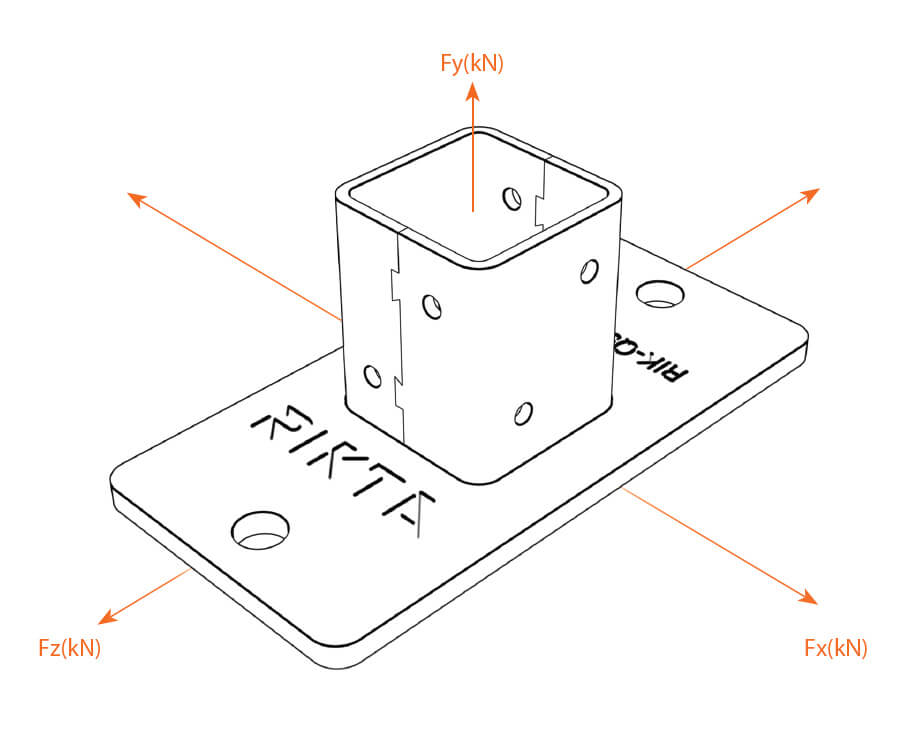

| Direction of Force | Peak Load (kN) |
|---|---|
| Fx(kN) | 8.00 |
| Fy(kN) | 23.31 |
| Fz(kN) | 11.09 |

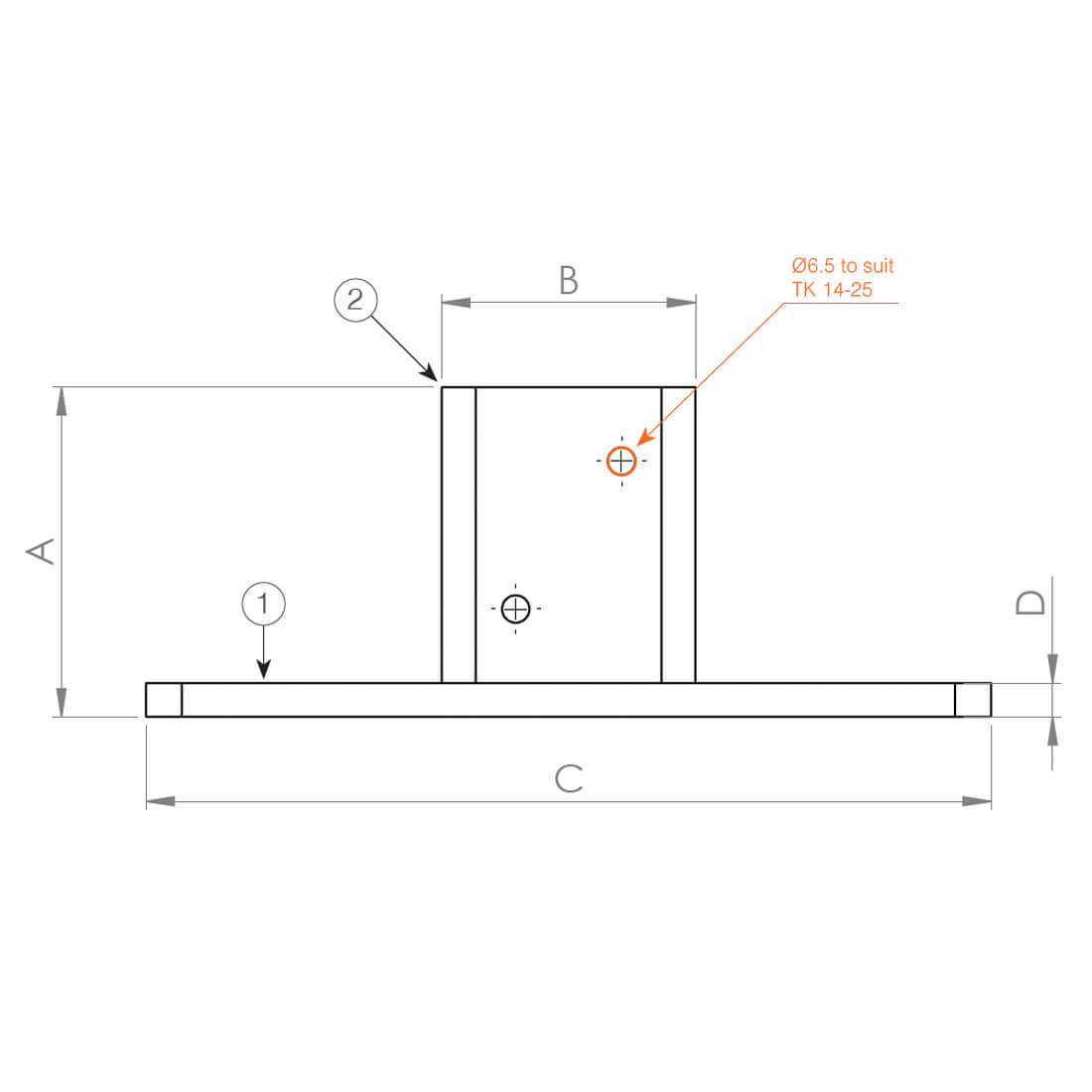

| RIK-Q50-W12 | Dimensions |
|---|---|
| A | 78 |
| B | 60 |
| C | 200 |
| D | 8 |
| Materials |
|---|
| 1 AS G350 Mild Steel 2 AS1163 C450L0 SHS 65 x 65 x 6 |
